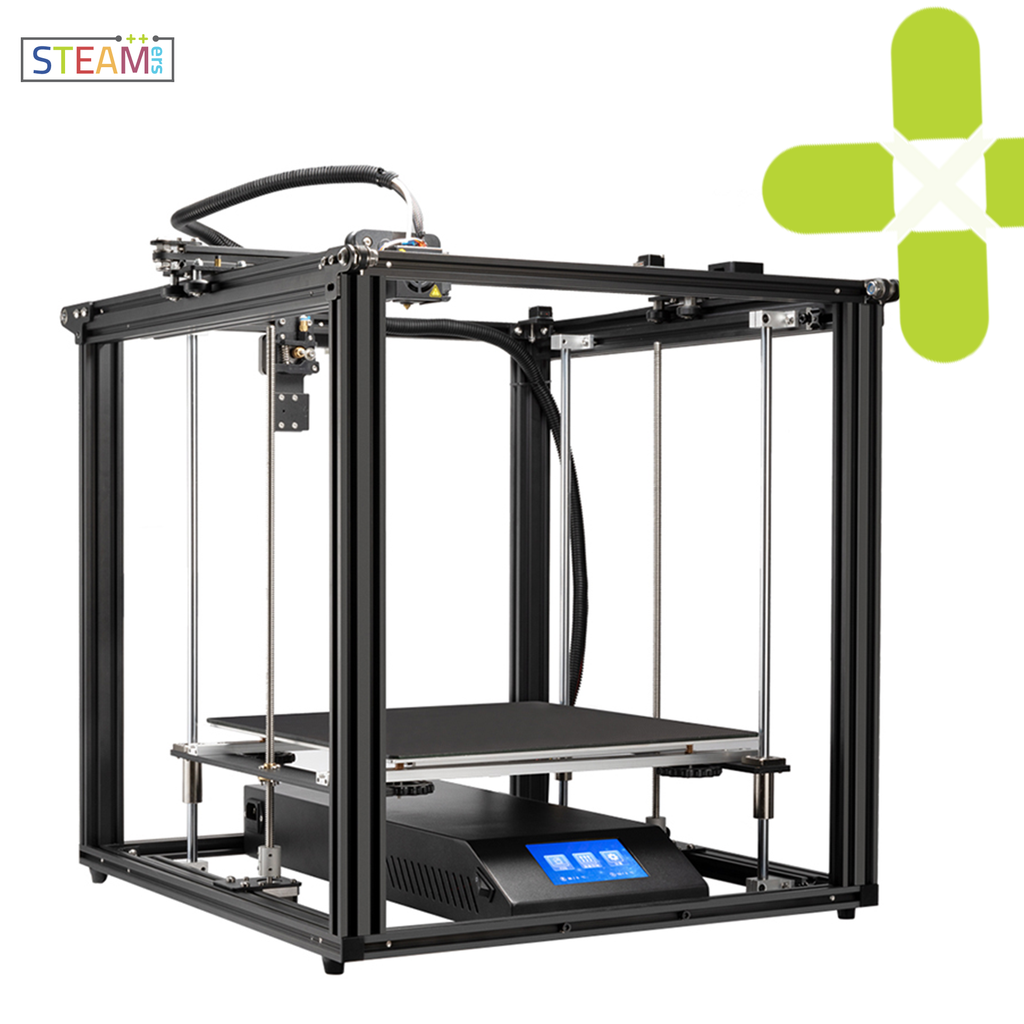

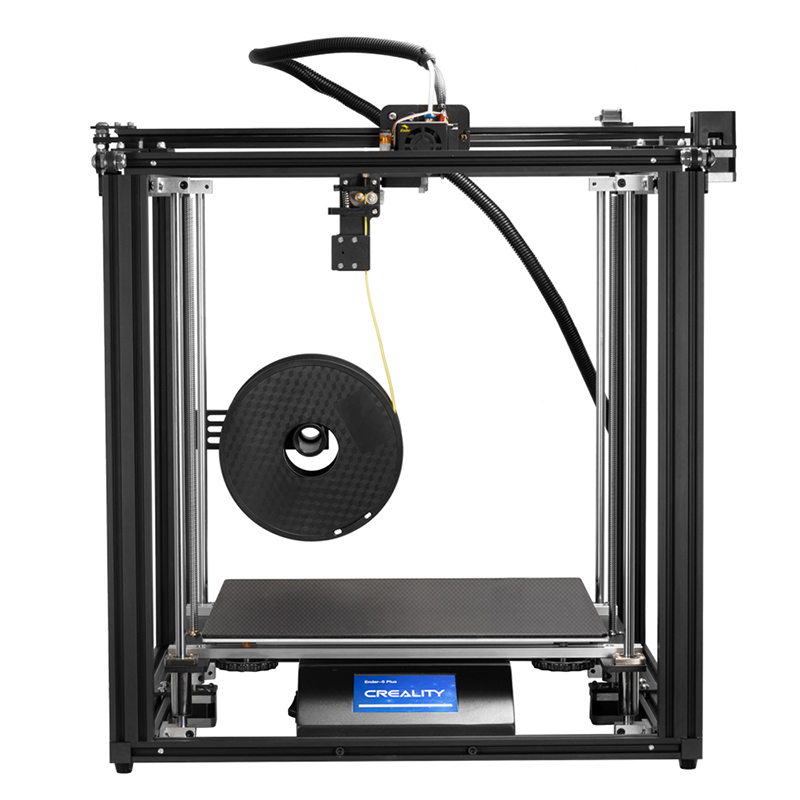

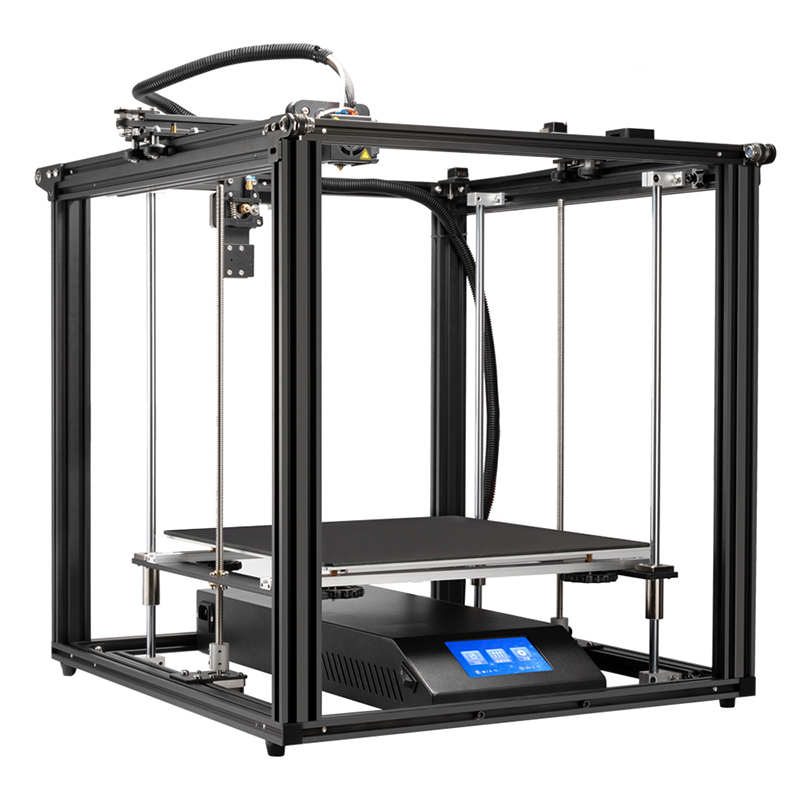

Creality 3D Printer [Ender-5 Plus]

Creality Ender-5 Plus 3d printer | Ultra Large scale 3d printer redesigned, bl touch pre-installed for easier auto-leveling, filament sensor equipped to avoid occasional printing errors, and dual Y-axis are also added for helping stable printing and smoother transmission.


1. General Features:

• Print Volume: 350 x 350 x 400 mm
• Print Technology: FDM (Fused Deposition Modeling)
• Frame Design: Cubic frame with an overhead gantry
• Touchscreen: 4.3-inch color HD touchscreen for easy navigation and operation

2. Printing Specifications:

• Printing Accuracy: ±0.1 mm
• Layer Thickness: 0.1 mm to 0.4 mm
• Nozzle Size: Standard 0.4 mm (compatible with 0.6 mm and 0.8 mm)
• Printing Speed: 60 mm/s to 180 mm/s
• Supported Filaments: PLA, ABS, TPU, Wood, Metal-infused, and other specialty filaments
• Filament Diameter: 1.75 mm

3. Heating Capabilities:

• Hotend Maximum Temperature: ≤260°C
• Heatbed Maximum Temperature: ≤110°C

4. Features:

• Auto Bed Leveling: Equipped with BLTouch for semi-automatic leveling
• Removable Glass Build Plate: Provides smooth surface finish and easy model removal
• Filament End Sensor: Pauses printing when filament runs out or breaks
• Power Resume Function: Resumes printing after power loss
• Thermal Runaway Protection: Enhances safety during operation

5. Connectivity:

• Interface: Online web interface, SD card support
• File Formats Supported: STL, OBJ, AMF
• Operating System Compatibility: MAC, Linux, Windows (XP, Vista, 7, 10)

6. Power Supply:

• Input: 100-240V AC
• Output: DC 24V, up to 25A, 550W maximum power

7. Dimensions:

• Printer Dimensions: 632 x 666 x 619 mm
